Per day, weekly & monthly

Self Support Extension Ladder

Foldable Telescopic Model with 4 Legs. It can locks at any required height and adjustable
Description : Side ‘c section 65mm X 38mmSteps 25.4mm dia non slip corrugated tubing permanent punching in machine, fitted & operate with (Nylon) Polypropylene Rope pulley arrangement It with bracket, lockable stoppers, solid rubber shoes and caps.

Available Sizes :10ft to 45ft Extended height.

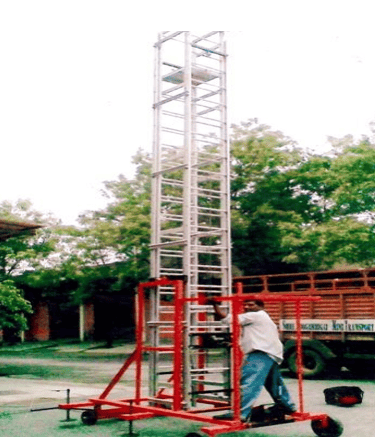

Tilt able Tower Ladder

Moveable with Safety Rail

Description : Heavy Duty Telescopic model in 2 section and 3 section made from side ‘c’ section 68mm X 38mm X 3mm thick and steps 25.5mm dia non slip corrugated tubing permanent punching in machine fitted with mild steel painted base trolley made up of 100mm X 50mm X 6mm thick MS channels and L-angles with wheels and parking jacks.

Providing 2nose heavy duty winch gear box for tilting fitted with safety lock, tool tray, safety gate and cage platform covered with alumniumcheckered sheet size 450mm X 500mm specially using 8mm thick steel rope with pulley system and stoppers attached with toeing bar handle.

Note: It can fixed in vehicle or trolley type.

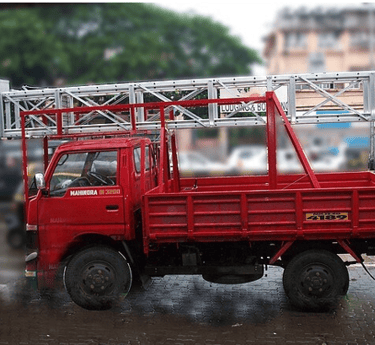

Vehicle Mounted Tower Ladder

Moveable with Safety Rail

Description : Heavy Duty Telescopic Model in 2 section and 3 section made from side ‘c’ section 68mm X 38mm X 3mm thick and steps 25.5mm dia non slip corrugated tubing permanent punching in machine fitted with mild steel painted base trolley made up of 100mm X 50mm X 6mm thick MS channels and L-angles with wheels and parking jacks.

Providing 2 nose heavy duty winch gear box for tilting. fitted with safety lock, tool tray, safety gate and cage platform covered with alumnium checkered sheet size 450mm X 500mm specially using 8mm thick steel rope with pulley system and stoppers attached with toeing bar handle.

Note: it can fixed in vehicle or Trolley Type

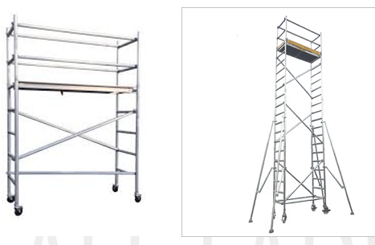

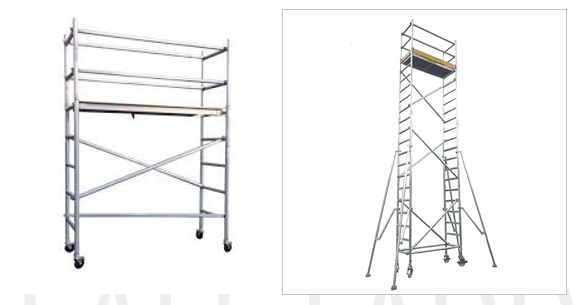

Aluminium Single Width Mobile Tower

Description : A combination of Ladder and Safety work platform for 4 persons, Alco Scaffolding can be assembled / dismantled with in a shot time with out any tools kit it can store in small space. All are detachable.

Also Scaffolding component are alloy Aluminium fully welded and strong unshakable can not twist or break and have a high load bearing capacity long lasting and maintenance free.

Available additional ‘H’ Frames, Horizontal braces, diagonal Braces, Platforms, Stabilizers, Breakable & Adjustable Board, Staircase Ladder, Cantilever & Store trolley with Toe bar handle to store and lock all the material

• Scaffolding Width: 750mm

• Scaffolding Length: 1800 mm, 2500 mm and 3000mm

• Working Height : 4500mm, 13450mm

• Loading Capacity: 200 kg

Features

• The single-width scaffolding tower fits a single platform per level and is ideal for accessing heights where space is constrained.

• Option to work at several heights and one time, by using additional platforms.

• Minimal storage space, due to less number and size of parts.

Application

• Installation works

• Maintenance

• Ceiling and A/C work

• Painting contractors

• Construction work

• Industrial use

• Cleaning jobs

• Shafts and narrow work area

Available Sizes : Free standing 6ft. to 20 ft

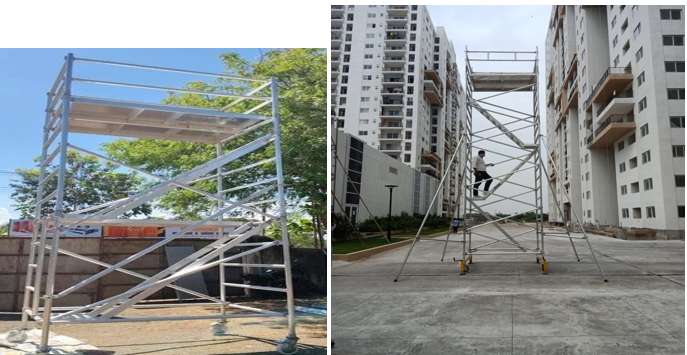

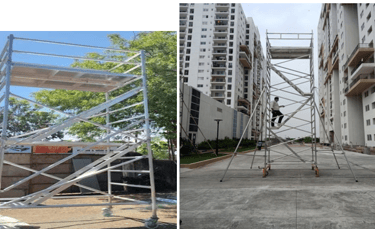

Aluminium Double Width Mobile Tower

• Scaffolding Width: 1350mm,

• Scaffolding Length: 1800mm, 2500 and 3000mm

• Working Height : 4500mm, 13450mm

• Loading Capacity: 200 Kg

Features

• Ladder frame allows easy ascent to the top

• Light weight, easy assembly/ disassembly method

• Option to work at several heights at one time, by using additional platforms

Application

• Installation works

• Maintenance

• Ceiling and A/C work

• Painting contractors

• Construction work

• Industrial use

• Cleaning jobs

• Shafts and narrow work area

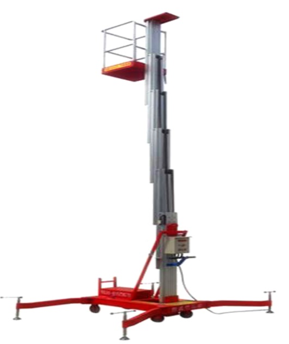

Aerial Work Platform Single Mast DC Operated

Capacity : 125kgs/8-10m

Aerial work platform dual mast

Capacity :150- 1000kgs/18m

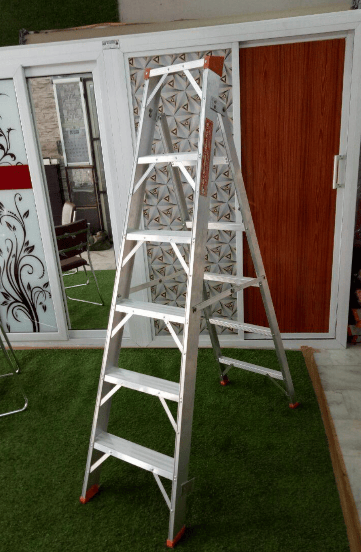

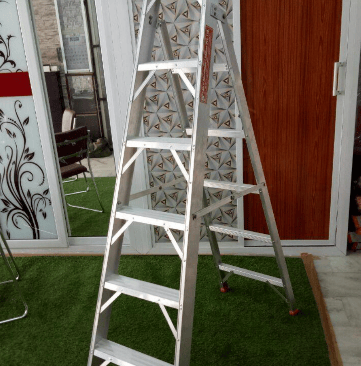

Aluminium A TYPE ladder 10 ft to 20ft

Description : Side ‘c’ section 65mm X 38mm steps nut bolt fitting detachable. Locking clip angel 125mm X 350mm, platform on top with solid rubber shoes.

Available Sizes : 10ft to 20 FT converted into 40 ft in Single Position

Usage: 1) inside home work

2) cleaning work, office purpose.

3) hotels, malls,Tiffin center etc.

Scissor Lift Work Platform DC Operated

Capacity :150- 1000kgs/18m
